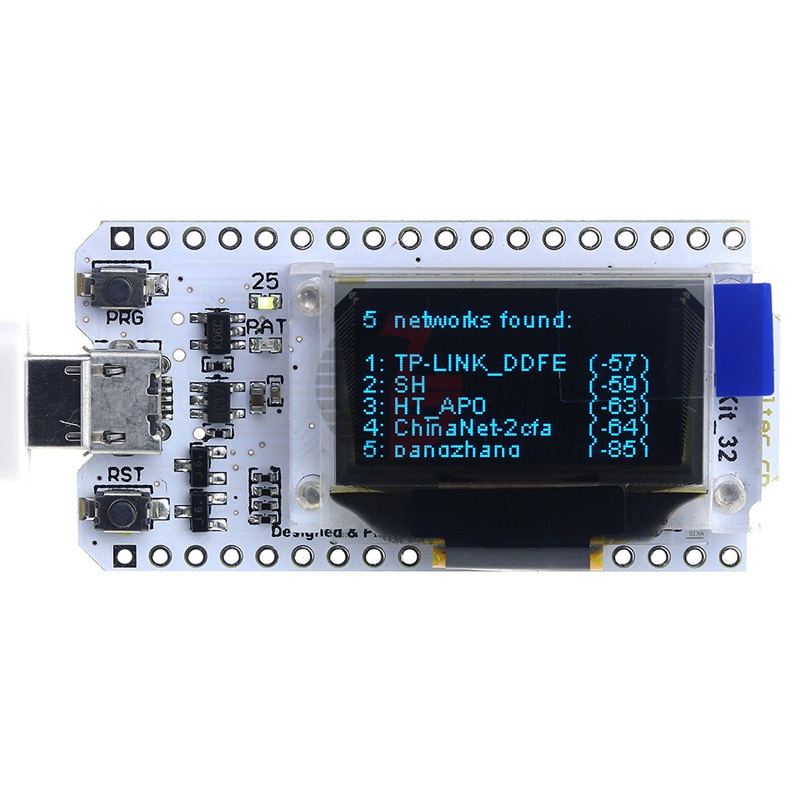

ESP32 Bluetooth WIFI Kit Blue OLED 0.96 inch Display Module CP2102 32M Flash 3.3V-7V Internet Development Board for Arduino

WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.

Operating voltage: 3.3V to 7V

Operating temperature range: -40 ° C to + 90 ° C

Supports Sniffer, Station, softAP and Wi-Fi Direct modes

Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b

Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n

Receiver sensitivity up to - 98 dBm

UDP continues to throughput by 135 Mbps
