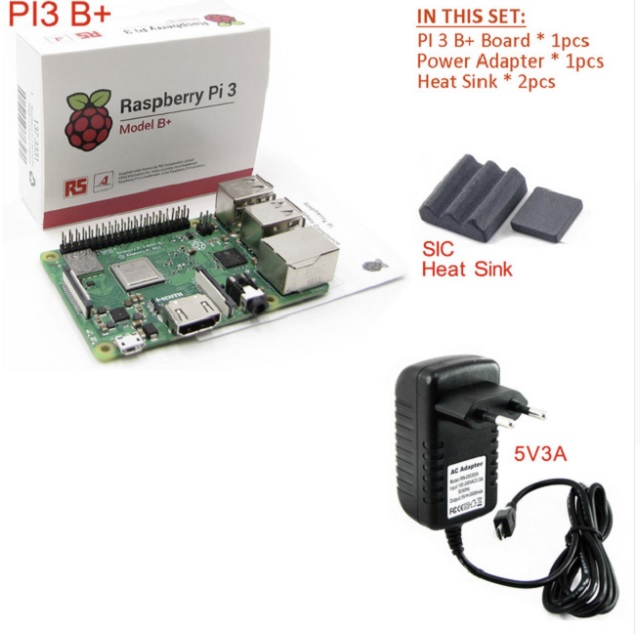

RS Version: 2018 New Original Raspberry Pi 3 Model B+Plus BCM2837B0 1GB SDRAM on-board WiFi/Bluetooth PI 3B+PI3 B+Plus

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range.

• Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
• 1GB LPDDR2 SDRAM
• 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
• Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
• Extended 40-pin GPIO header
• Full-size HDMI
• 4 USB 2.0 ports
• CSI camera port for connecting a Raspberry Pi camera
• DSI display port for connecting a Raspberry Pi touchscreen display
• 4-pole stereo output and composite video port
• Micro SD port for loading your operating system and storing data
• 5V/2.5A DC power input
• Power-over-Ethernet (PoE) support (requires separate PoE HAT)

PRODUCT BRIEF, MECHANICAL DRAWINGS, AND SCHEMATICS

• Raspberry Pi 3 Model B+ product brief ( https://static.raspberrypi.org/files/product-briefs/Raspberry-Pi-Model-Bplus-Product-Brief.pdf  )
• Raspberry Pi 3 Model B+ mechanical drawing ( https://github.com/raspberrypi/documentation/raw/master/hardware/raspberrypi/mechanical/rpi_MECH_3bplus.pdf  )
• Raspberry Pi 3 Model B+ schematic diagrams ( https://www.raspberrypi.org/documentation/hardware/raspberrypi/schematics/rpi_SCH_3bplus_1p0_reduced.pdf  )

HARDWARE SPECIFICATIONS

More detailed information on Raspberry Pi hardware is available. ( https://www.raspberrypi.org/documentation/hardware/raspberrypi/README.md )

OBSOLESCENCE STATEMENT

The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.
