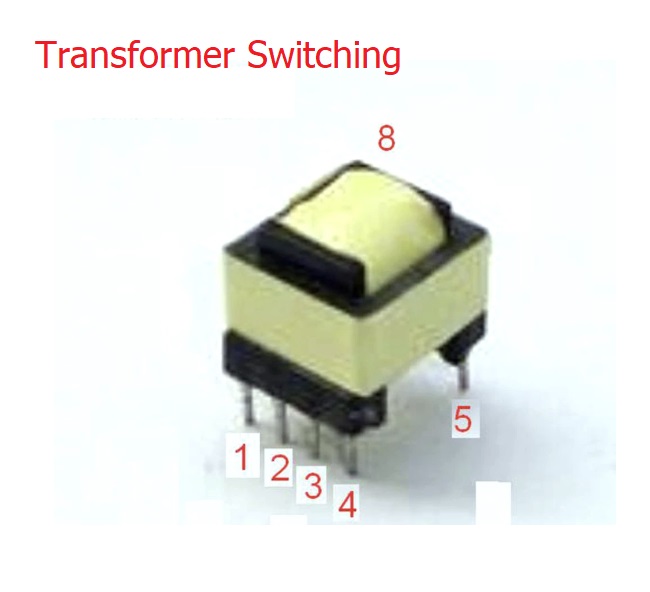

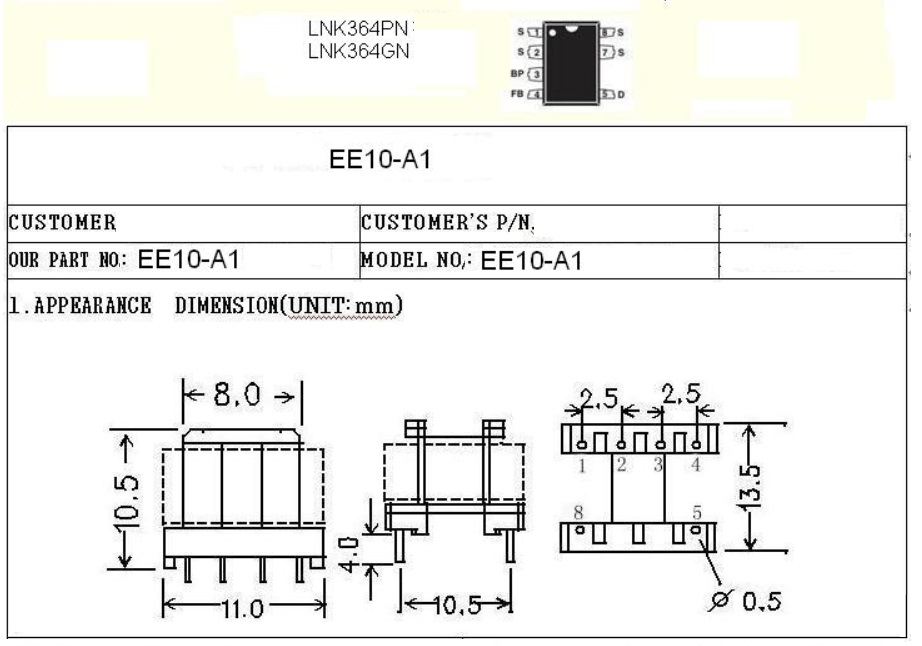

EE10-A1 switching power supply high frequency transformer 220V to 5-12V maximum output 3W

Transformer:
100K-200KHz low-power high-frequency transformer 5-12V maximum output 3W, long-term stable supply, large quantities of procurement, please order ahead of schedule. It is suitable for the use of switching power supply management chips such as LNK364PN sold in our shop. It is very simple to design a 5-12V switching power supply with a maximum output of 3W and a small volume.

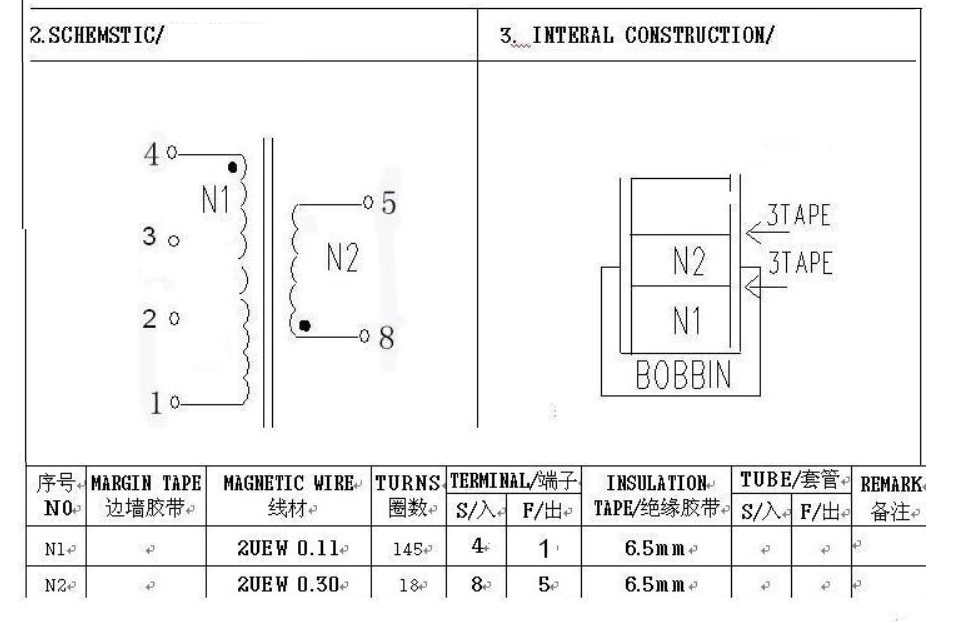

Primary inductance 2.6-4.0 mH, turn ratio 145:18

Special reminder to customers who do not know about switching power supply, this is a transformer of switching power supply, which can not be directly used at 220V 50Hz, directly connected to 50Hz AC will burn out.
