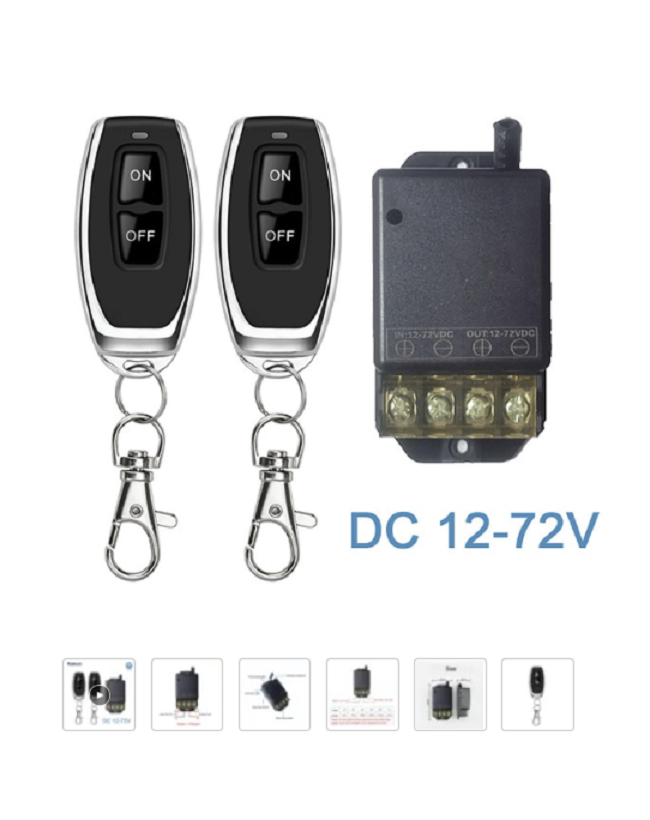

Rubrum High Power 433MHz Wireless Universal Remote Control Switch DC 12V 24V 48V 60V 72V 30A Receiver Module For Car Water Pump

Press the learning button on the module 8 times continuously, and the light flashes seven times and then goes out.

About Working Mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

Learning the Code: (Momentary)

1.Press the learning key on the receiver once time, it comes into momentary setting mode.
2.Wait for a moment, the LED will be off , it comes into learning state.
3.Push the remote button, LED indicator on the receiver board will flash then come off.
4.After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Toggle)

1.Press the learning key on the receiver twice time, it comes into toggle setting mode.
2.Wait for a moment, the LED will be off , it comes into learning state.
3.Press the remote button, LED indicator on the receiver board will flash then come off.
4.After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Latching)

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
1.Press the learning key on the receiver triple time, it comes into latching mode.
2.Wait for a moment, the LED indicator on the receiver board will flash then come off.
3.Press the remote button A. LED flash for 5 times.
4.Press the remote button B. LED flash for 5 times
5.After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.

NOTE:

1.The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost.
2. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.
3. After deleted the data, all the remote controls cannot work any more.
