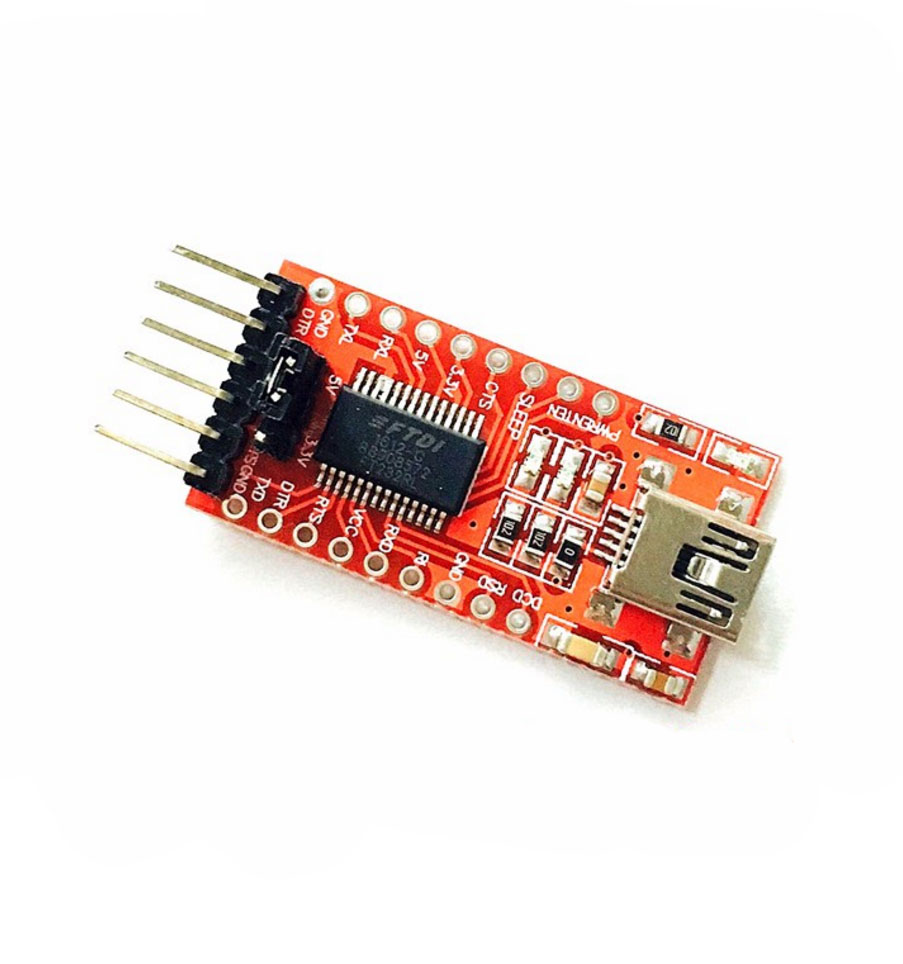

FT232RL FTDI USB 3.3V 5.5V to TTL Serial Adapter Module forArduino Mini Port

Module size:36mm(length)*17.5mm(width)

Product performance:

Standard interface , compatible with a variety ofFor ArduinoOfficial Controller

OriginalFT232Chip, stable performance

With power , sending, receiving indicator , working status

Have3.3VAnd5VPower supply options

Do ordinaryUSBSerialTTLModules, downloadSTCSCM

Packing List :

FTDI BasicProgram Downloader1A

miniUSBCable1Root

Introduction FT232R
With the development of computer technology , parallel and serial ports on the PC slowly disappeared , and now even the parallel port of the desktop are rare . But for engineers, parallel and serial interfaces are essential , especially in the serial . For computers without serial ports , the most convenient solution is to use USB to serial chip to virtual serial port out , many manufacturers have produced such a chip , such as silicon LABS of CP210x series , TI 's TUSB3410, Nanjing Qin Heng CH34x series, FTDI's FT232 series , Prolific 's PL230x series, Echo 's ARK3116 so on. From the stability point of view, the most reliable or FT232 series , you can use it to ease the debugging process without fear of a blue screen appears.
FT232R chip is a single-chip solution , generally do not need to use basic peripherals , and even crystal , USB matching resistor , place the product information have been integrated in the internal EEPROM of the . FT232R There are some more useful features, details can be found FT232R data sheet .

Datasheet Download : www.ftdichip.com/Products/ICs/FT232R.htm

Introduction:hardware
· using FTDI FT232RL chip companies ;
· FT232RL chip lead all the signal port , TTL / CMOS level ;
· RXD / TXD Transceiver Communications LED ;
· USB -powered, 5V or 3.3V selectable interface level ( if you need other levels can be
