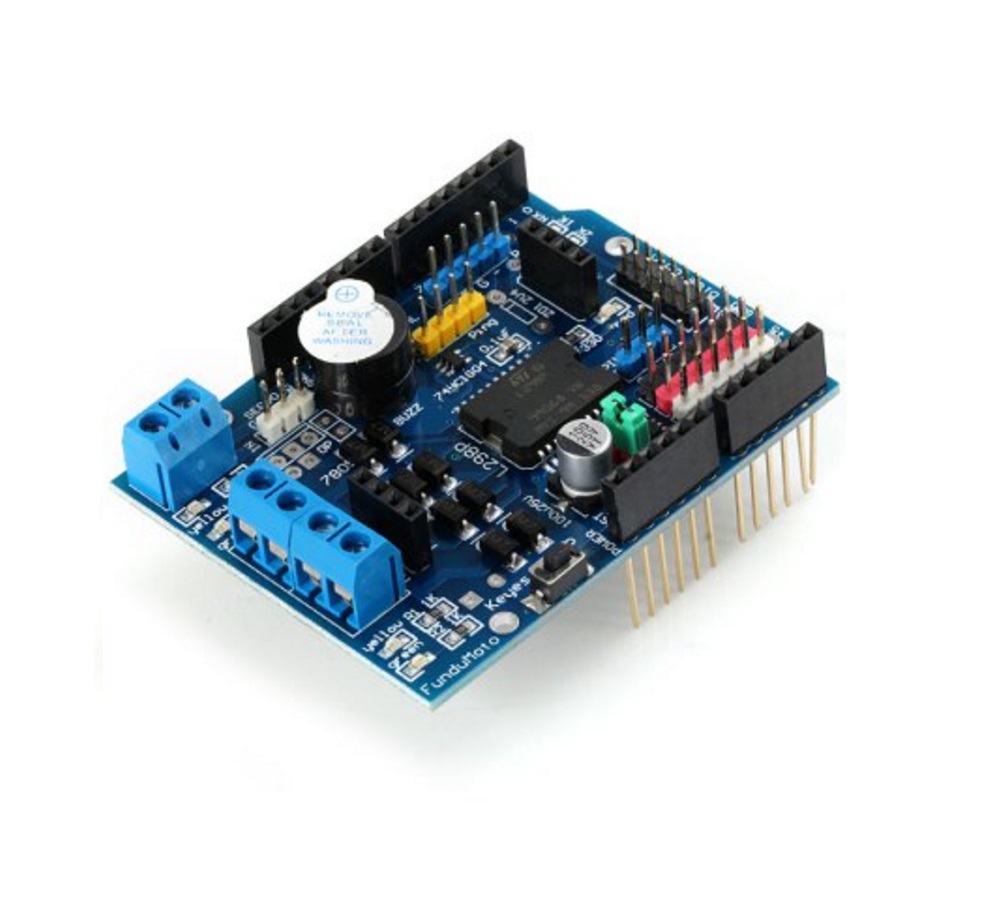

L298P PWM Speed Controller Dual High-Power H-bridge Driver ,Bluetooth Interface, L298P Motor Shield Board for Arduino

L298P PWM Speed Controller Dual High-Power H-bridge Driver ,Bluetooth Interface, L298P Motor Shield Board for Arduino

Parameters:

• Logical input voltage VD: DC 5V
• Drive input voltage: VIN 6.5 ~ 12V, PWR IN 4.8 ~ 24V
• Logical working current ss:  36mA
• Drive working current Io:  2A
• Maximum power dissipation: 25W (T= 75°c)
• Control signal input electric level:
• High: 2.3V Vin 5V
• Low: -0.3 V  Vin  15V
• Operating temperature: -25°c ~ +130°c

Features:

• 1. There is L298P motor driver chip on the board so that you can use digit IO interface(D .D10. D11. D12) without cumbersome wiring connection
• 2. Onboard buzzer (D4), you can set the astern alarm ringtone
• 3. Convenient motor interface can be two routes motor output
• 4. Two-way bluetooth interface requires no wiring and you can plug directly
• 5. It has seven digital interface that are not occupied (including D 2 , D 3 , D 5 , D 6 , D 7 , D 9 , D )
• 6. It has six analog interfaces(A0, A1, A2, A3, A4, A5)
• 7. It has indicator for forward and backward changing direction

Package includes:

• 1 x L298P Motor Driver (PWM Driver)
