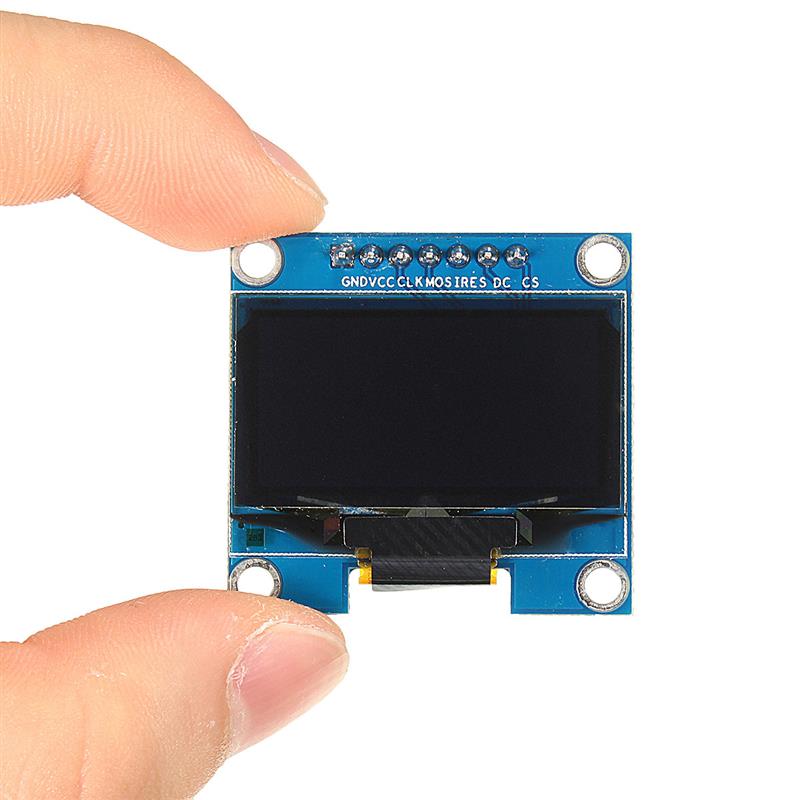

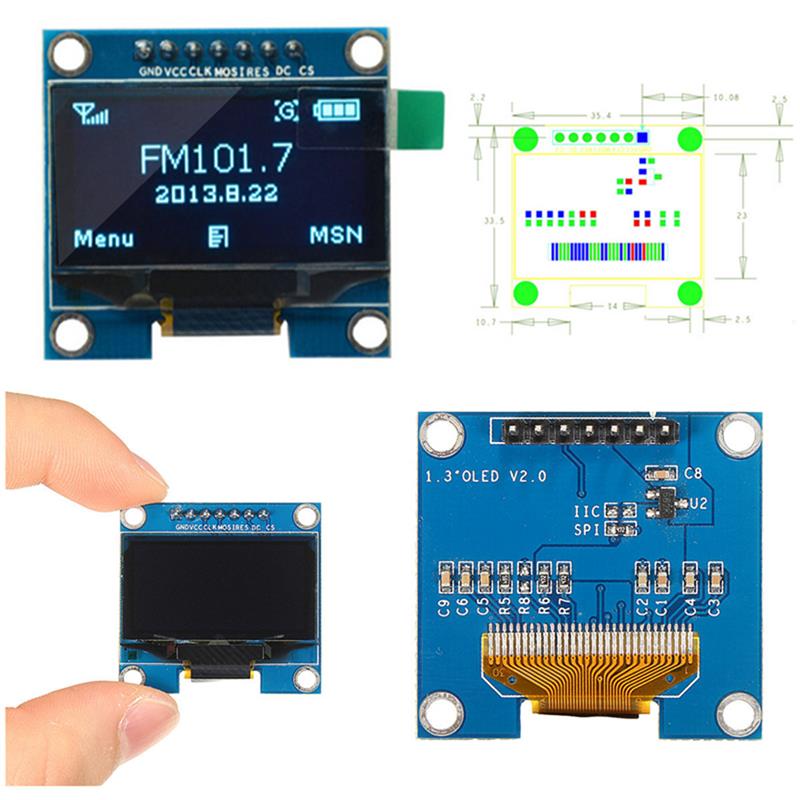

0.96" Blue New 128X64 OLED LCD LED Display Module For Arduino 0.96" SPI Communicate

Specifications:
1.Neednt backlight the display unit can self-luminous
2.High resolution:128*64
3.Viewing angle:>160
4.OLED screens inside the driver chips : SSH1106
5.Supports many control chip : fully compatible with For Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
6.Ultra-low power consumption:full screen lit 0.08w
7.Voltage 3v-5vdc
8.Work temp : -30c-70c
9.Spi interface
10.The color of word : blue

Pin Description
1.GND: Power ground
2.VDD:2.8-5.5V power supply
3.SCK: CLK clock
4.SDA: MOSI data
5.RES: Reset
6.DC: data / command
7.CS: chip-select signal

Package included:
1x OLED Display Module For Arduino
